Deploying Secure Java Applications on AWS EKS Using GitLab CI/CD, Maven, Trivy and SonarQube

In modern DevOps, automation is crucial for efficient, reliable, and consistent software deployment. GitLab CI/CD is a powerful tool that helps streamline the entire software delivery process. In this project, we’ll explore how to use GitLab CI/CD to deploy a Java application on a aws-managed Kubernetes multi-cluster set up using eksctl. We'll cover the process from creating the Kubernetes cluster to deploying a containerized Java application, integrating essential DevOps tools like Trivy and SonarQube along the way.

Step-by-Step Workflow:

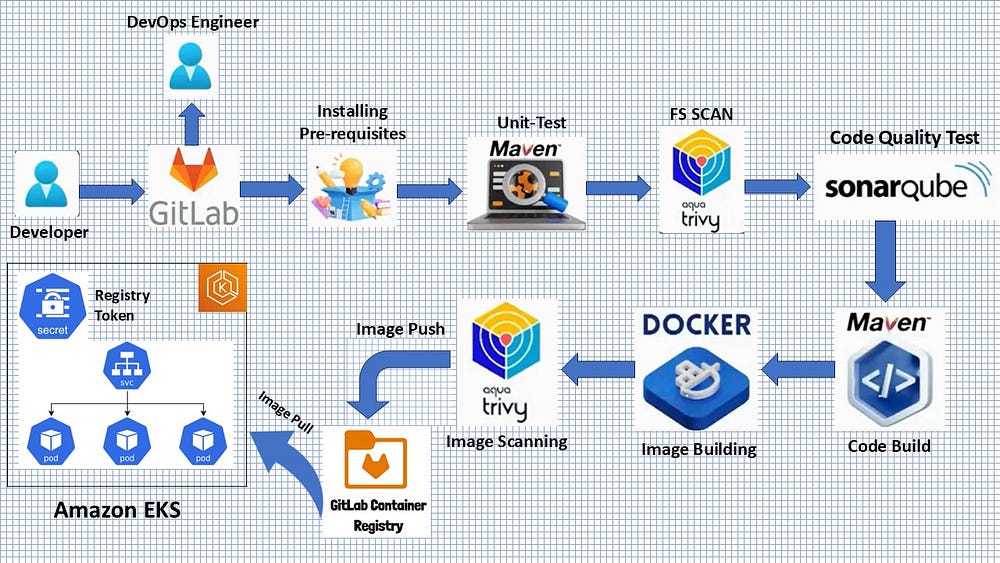

Project Overview

1. Registering an AWS Instance as a GitLab Runner
2. Creating a GitLab CI/CD Pipeline
3. Unit Testing with Maven
4. Scanning Dependencies with Trivy
5. Analyzing Code Quality with SonarQube
6. Building and Containerizing the Application
7. Scanning the Container Image with Trivy.
8. Pushing the Container Image to GitLab Container Registry.
9. Deploying the Application to Kubernetes
10. Setting up AWS EKS Cluster using eksctl.
11. Connecting EKS Cluster with GitLab
12. Running the Pipeline

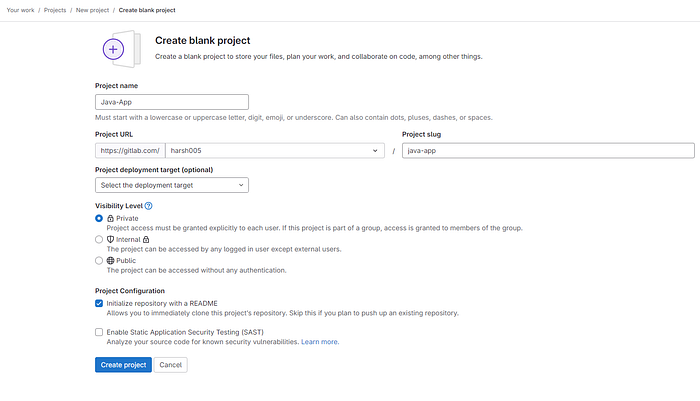

Step 1: Create New Project in Gitlab:

Step 2: Setting Up AWS Instance as a Gitlab Agent

1. Log in to AWS Management Console.

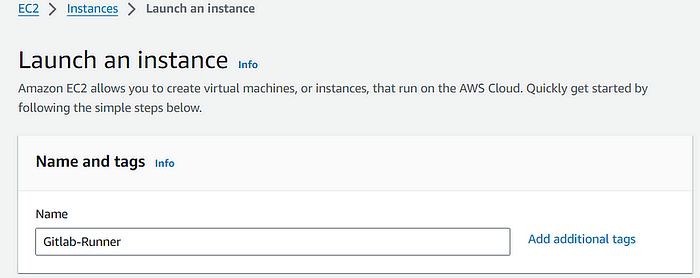

2. Launch an EC2 instance with the following specifications:

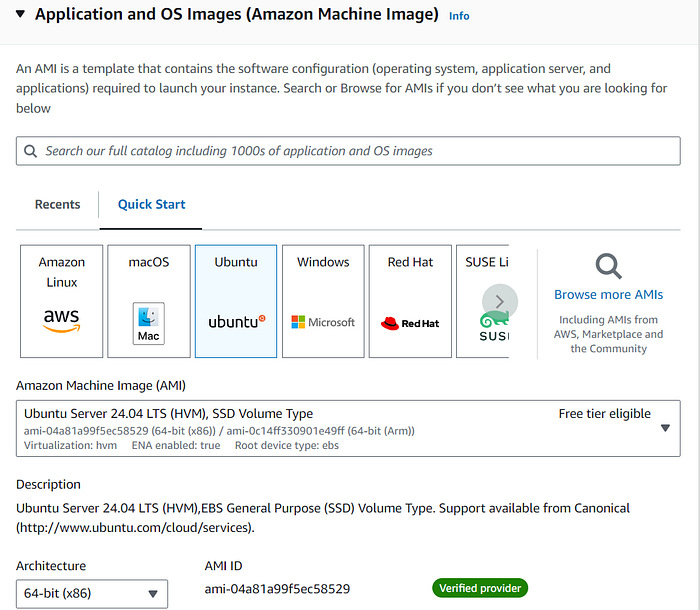

• Amazon Machine Image (AMI): Choose an Ubuntu or Amazon Linux AMI.

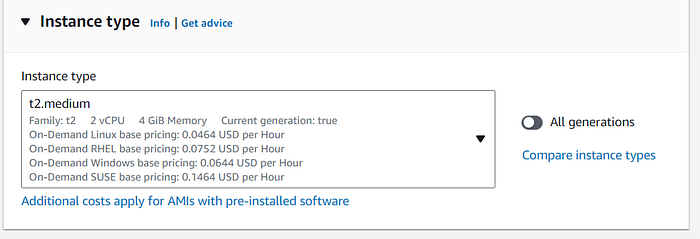

• Instance Type: Select an instance type that suits your job requirements (e.g., t2.micro for testing).
• Security Group: Ensure the instance allows SSH access.

Install GitLab Runner on the EC2 Instance

1. SSH into your EC2 instance:

2. Install GitLab Runner:

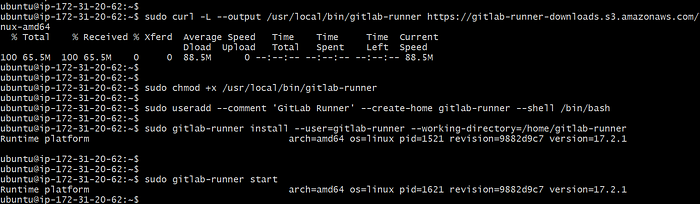

• Run the below commands to install gitlab runner.

sudo curl -L --output /usr/local/bin/gitlab-runner https://gitlab-runner-downloads.s3.amazonaws.com/latest/binaries/gitlab-runner-linux-amd64
sudo chmod +x /usr/local/bin/gitlab-runner
sudo useradd --comment 'GitLab Runner' --create-home gitlab-runner --shell /bin/bash
sudo gitlab-runner install --user=gitlab-runner --working-directory=/home/gitlab-runner
sudo gitlab-runner start

Register the Runner with Your GitLab Project

• Now we need authentication token for registering this instance as a runner for my project.

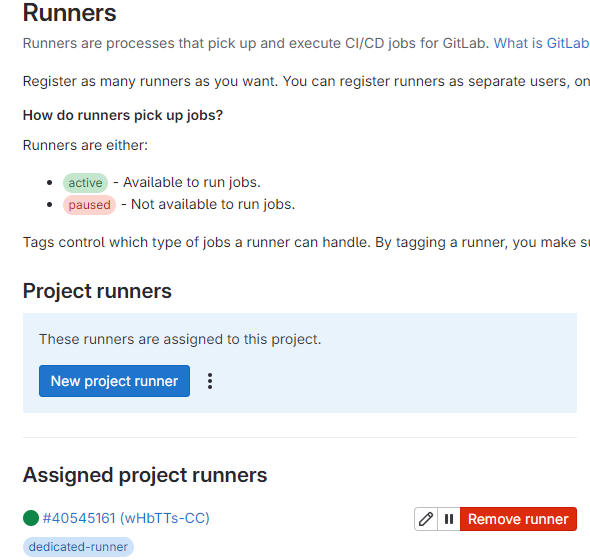

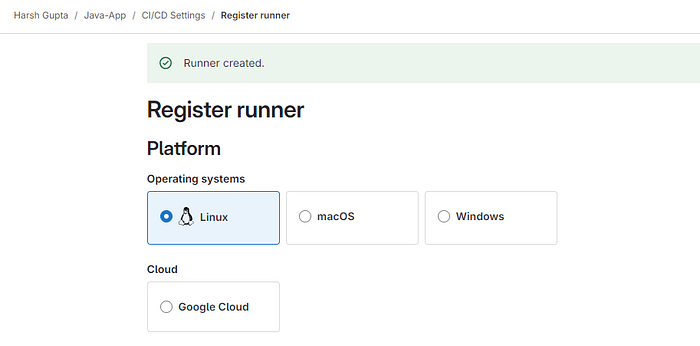

• Go to your Project > settings > CI/CD > Runners.

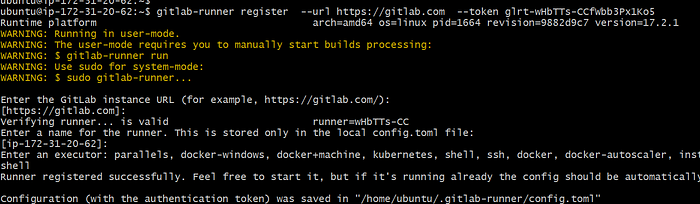

• We need to run below command in the AWS instance to get it registered.

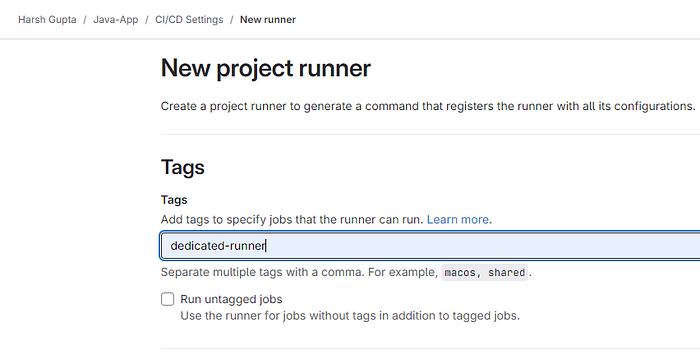

• Give the appropriate tag name.

• We need to run below command in the AWS instance to get it registered.

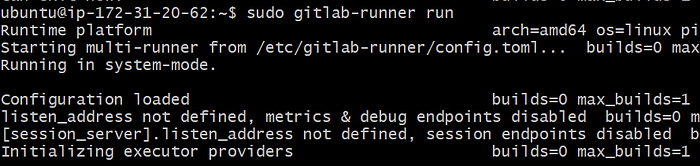

sudo gitlab-runner run

Follow the prompts:

• Enter the GitLab instance URL: https://gitlab.com/
• Enter the executor: Choose shell for simplicity, but you can use Docker or other executors.
• Verify by reading the file /home/ubuntu/.gitlab-runner/config.toml file.

Step 3: Creating a GitLab CI/CD Pipeline

Now that our infrastructure is ready, we can start defining the GitLab CI/CD pipeline in a .gitlab-ci.yml file. The pipeline will consist of several stages, including testing, scanning, building, and deploying the Java application.

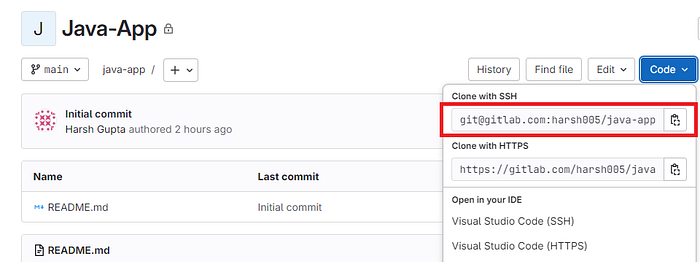

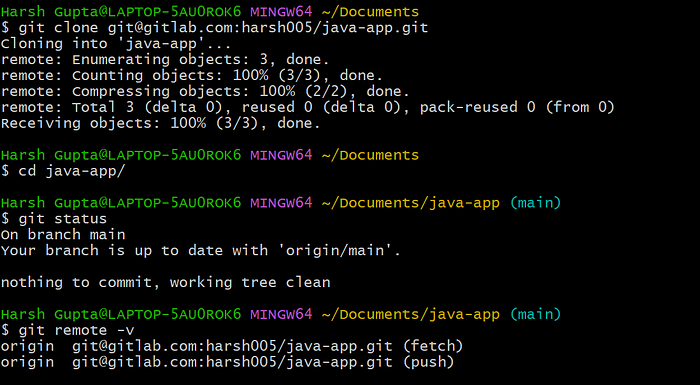

1. Clone the repository in your local environment.

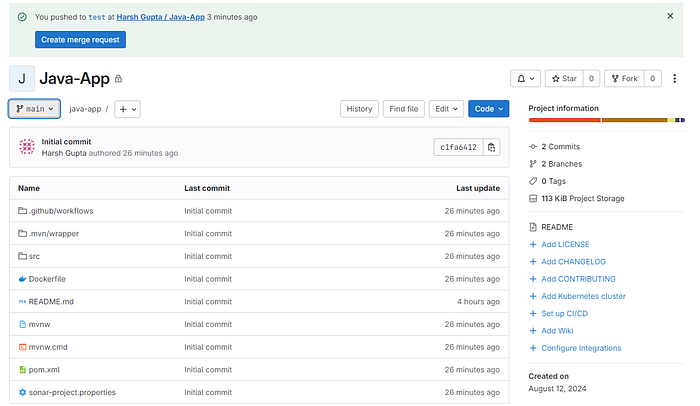

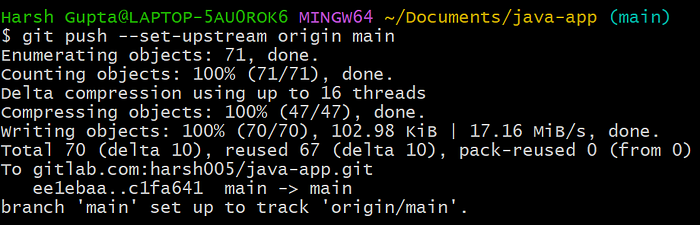

2. Add the code and push it to the github repository..

Step 4: Pipeline Configuration: .gitlab-ci.yml

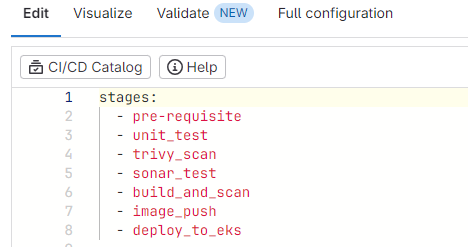

1. STAGES:

• First, we will set the stages in the file:

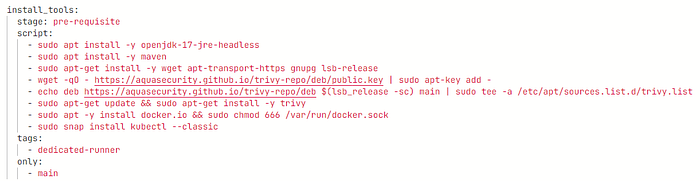

2. Installing Pre-requisites Tools:

• Some tools are need to be installed before going ahead with the project.

- sudo apt install -y openjdk-17-jre-headless
- sudo apt install -y maven
- sudo apt-get install -y wget apt-transport-https gnupg lsb-release
- wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | sudo apt-key add -
- echo deb https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main | sudo tee -a /etc/apt/sources.list.d/trivy.list
- sudo apt -y install docker.io && chmod 666 /var/run/docker.sock
- sudo apt-get update && sudo apt-get install -y trivy
- sudo snap install kubectl --classic

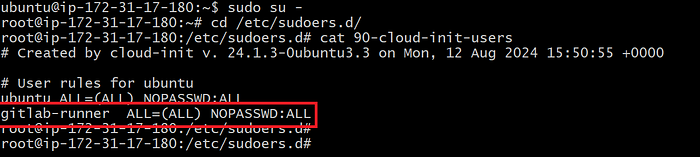

• But for this, we need to give sudo powers to the user gitlab-runner otherwise these commands will not work.
• Go to the /etc/sudoers.d folder and edit the below file.

3. Unit Testing with Maven:

• Unit testing is the first step in ensuring the reliability of your application. Maven is used here to run unit tests.

 mvn test

• This command compiles the code and runs the tests defined in the project. The output will provide insights into any failures or issues that need to be addressed.

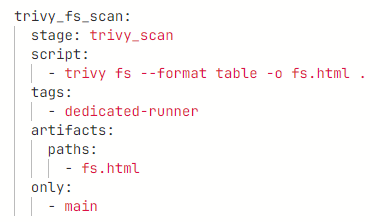

4. Scanning Dependencies with Trivy

• Trivy is a vulnerability scanner for container images, file systems, and Git repositories. We use it here to scan the dependencies of our Java application.

trivy fs --format table -o fs.html .

• This command scans the current directory for any vulnerabilities in the dependencies used by the application and store the output in fs.html file.

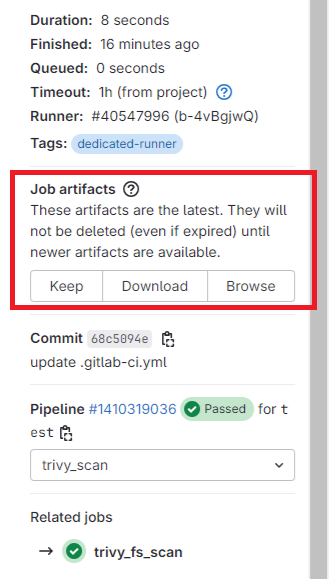

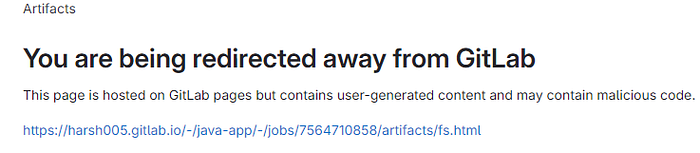

• It’s a crucial step to ensure the security of your project. We will then artifacts the fs.html file to get the output.

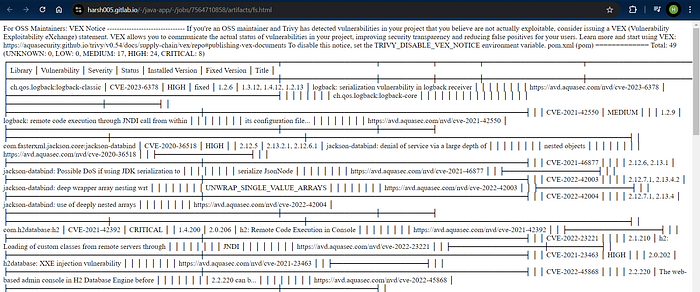

• When we run it, it shows the output something like this :

5. Analyzing Code Quality with SonarQube

• SonarQube is a tool that analyzes source code to detect bugs, vulnerabilities, and code smells.
• Integrating SonarQube into your CI pipeline helps maintain high code quality.
• Sonarqube consist of two parts, one is scanner part and other is server part. We will setup the server first manually with the help of docker.

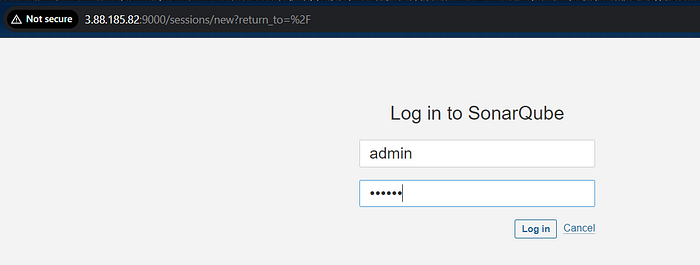

• Access the sonarqube portal at https://public-ip:9000

• Default username and password is admin

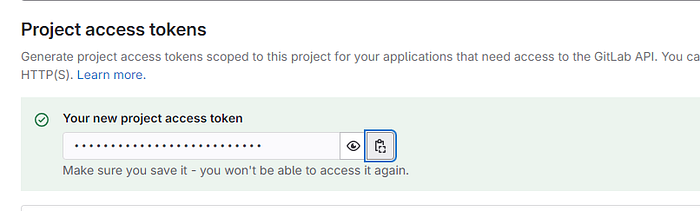

• For personal token, Go to Project > Settings > Access Tokens.
• Click on Add Token

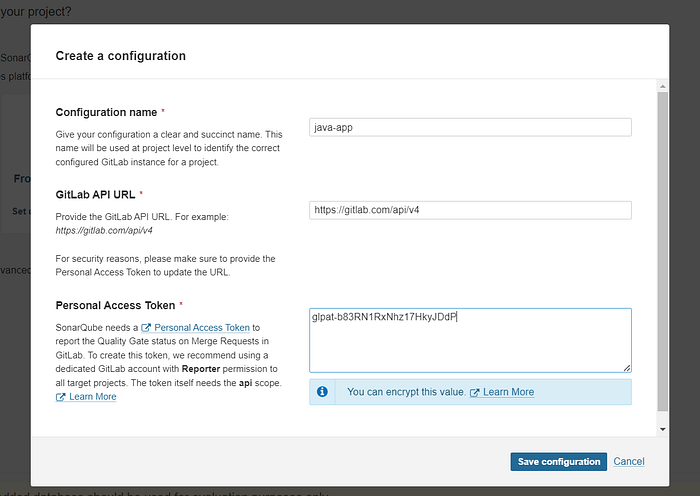

• Copy the code and paste it in the sonarqube.

• Save Configuration.

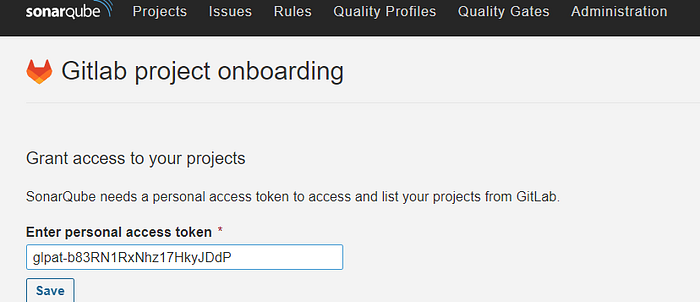

• Enter your personal token here also and save it.

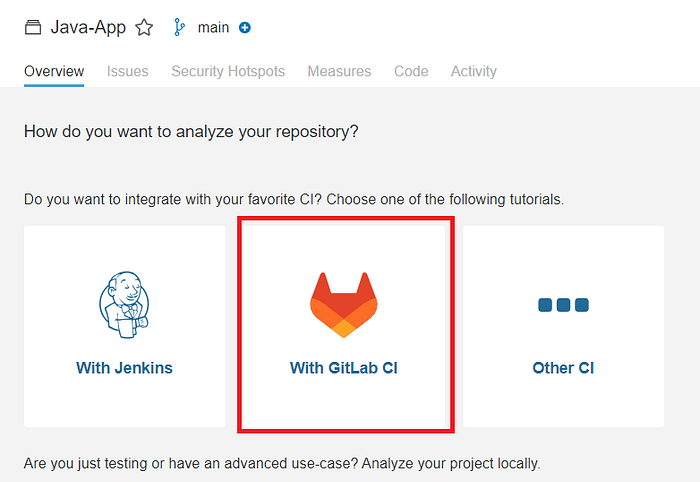

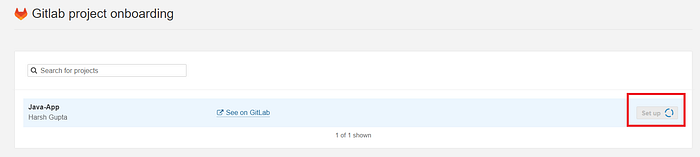

• Click on Set up .

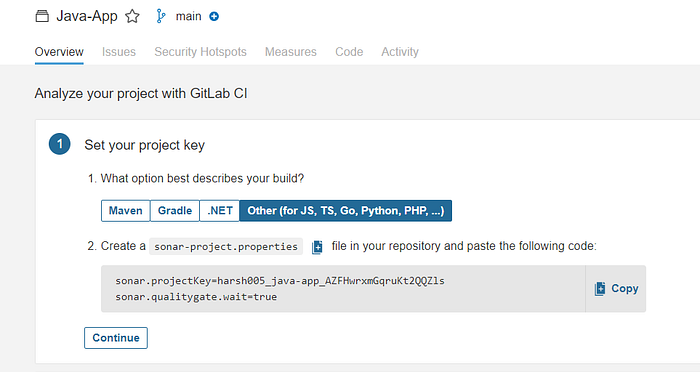

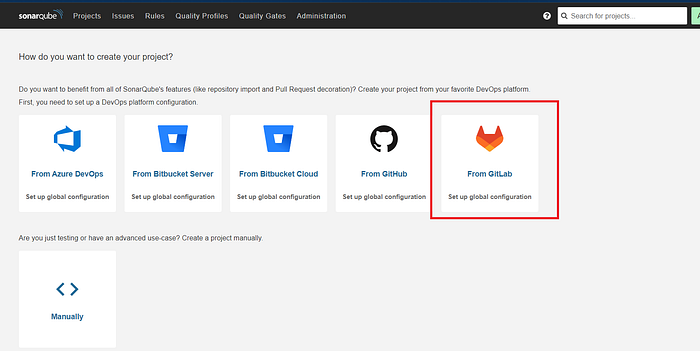

• Choose other from below option and copy the code.

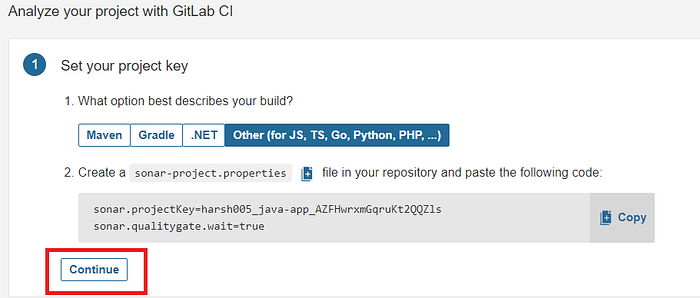

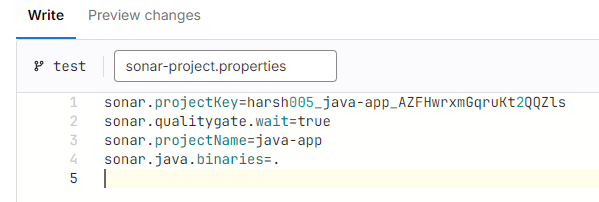

• Go to your gitlab repository and create the file sonar-project.properties and paste this code in there.

• Save the file and click on continue on sonarqube portal.

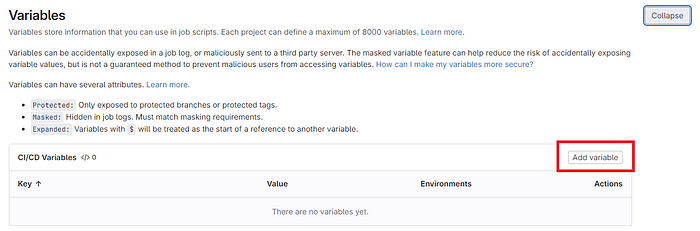

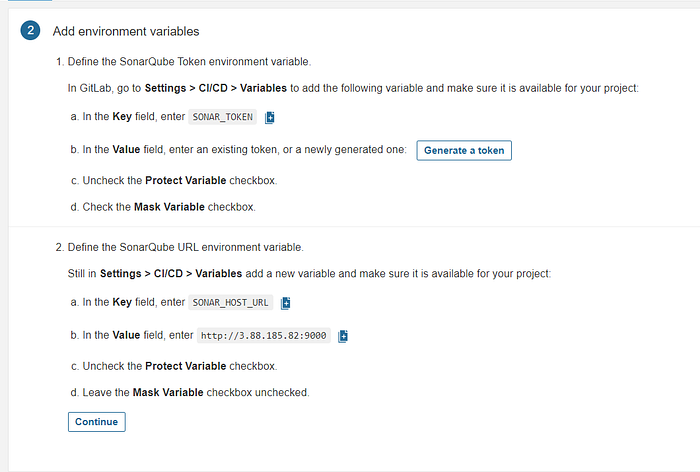

• Then we will follow the next step Add environment variables .

• So as per the 2nd step, we will create 2 variables.

• Click on continue on the sonarqube 2nd step after completing this.

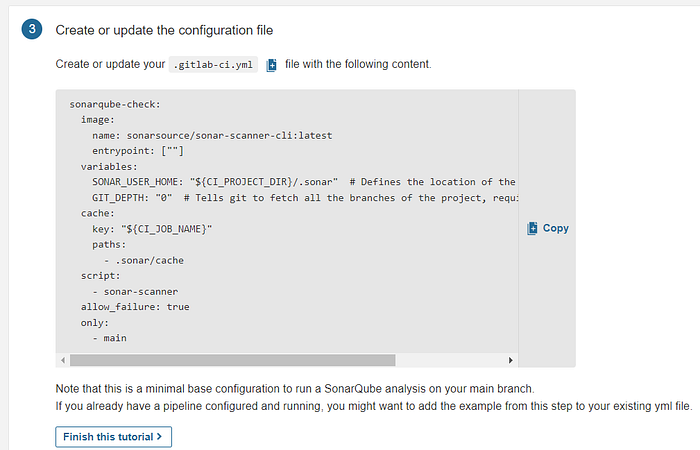

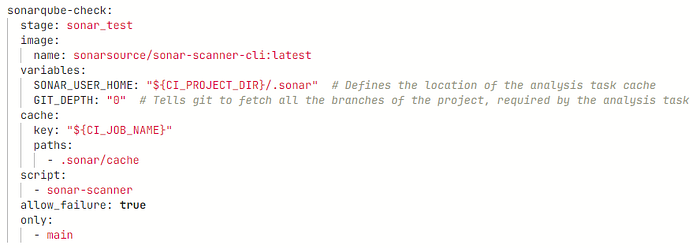

• It will provide us the entire job that we need to copy and paste in our .gitlab-ci.yml file.

• Append the pipeline and save it:

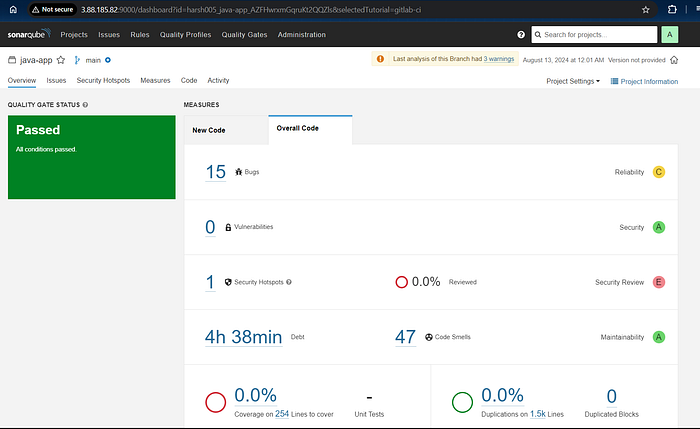

• When we run the pipeline, sonarqube will show the result something like this on the server.

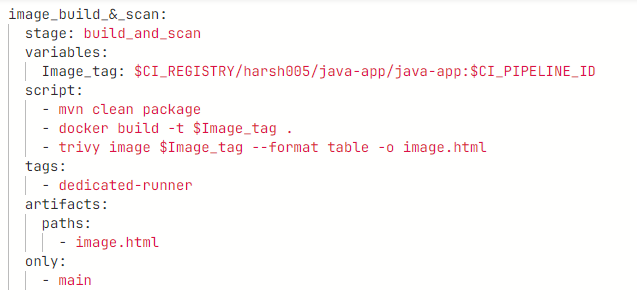

6. Building and Containerizing and Scanning the Application

• Once testing and scanning are completed, the next step is to build the application package and create a Docker image.
• Before pushing the image, we scan it with Trivy to ensure it doesn’t contain any vulnerabilities.
• This step is vital for security, as it identifies any issues within the built Docker image.

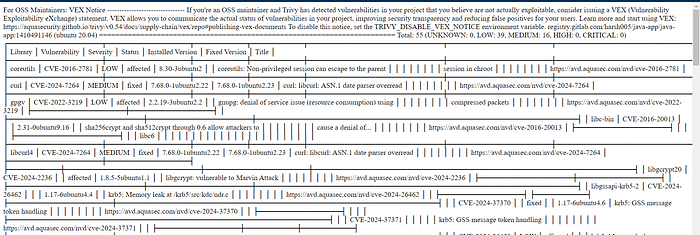

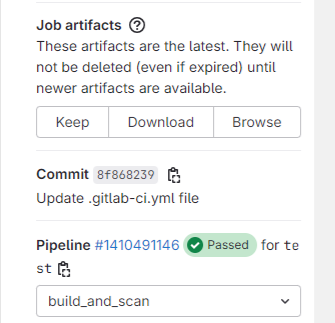

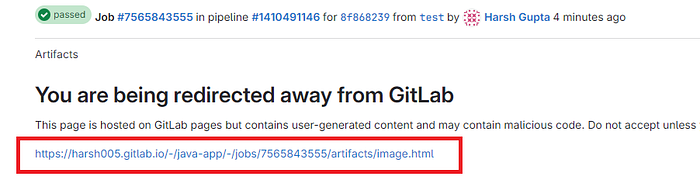

• When you successfully run the pipeline, you will show the output something like this.

7. Pushing the Container Image to GitLab Container Registry

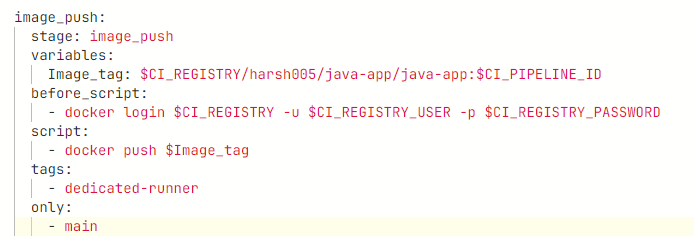

After creating the Docker image, we push it to the GitLab Container Registry, where it will be stored and accessible for deployment.

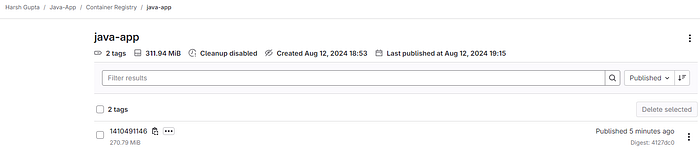

• When you run this job and if the job succeed, you will find that your image is being pushed in your Container Registry.
• In Deploy > Container Registry.

8. Deploying the Application to Kubernetes

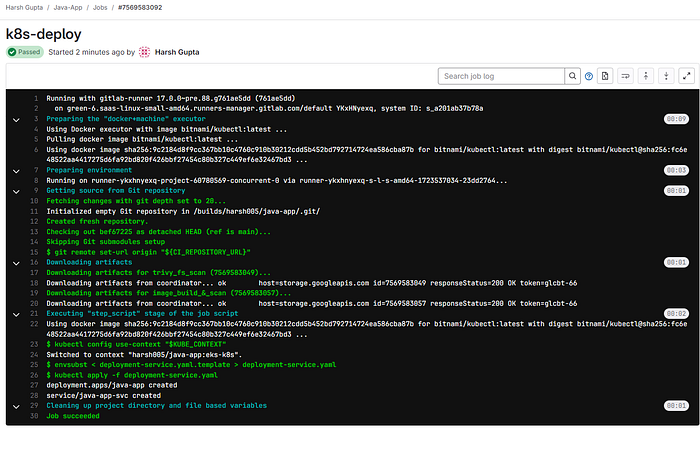

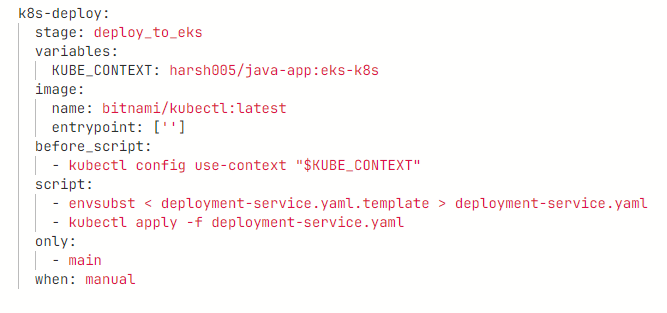

Finally, deploy the containerized application to your Kubernetes cluster:

• In this job, we will decode the config details that we earlier encoded for security purpose.

• Here we create a variable KUBE_CONTEXT project-path:k8s-agent and use the bitnami image for kubectl.
• Since our manifest include several gitlab variables, therefore we use envsubst keyword that will substitute the original values in place of them.

deployment-service.yaml.template :

apiVersion: apps/v1
kind: Deployment # Kubernetes resource kind we are creating
metadata:
  name: java-app
spec:
  selector:
    matchLabels:
      app: java-app
  replicas: 2 # Number of replicas that will be created for this deployment
  template:
    metadata:
      labels:
        app: java-app
    spec:
      imagePullSecrets:
        - name: registry-credentials # To authenticate to our container registry
      containers:
        - name: java-app-container
          image: $CI_REGISTRY/harsh005/java-app/java-app:$CI_PIPELINE_ID # Image that will be used to containers in the cluster
          imagePullPolicy: Always
          ports:
            - containerPort: 8080 # The port that the container is running on in the cluster


---

apiVersion: v1 # Kubernetes API version
kind: Service # Kubernetes resource kind we are creating
metadata: # Metadata of the resource kind we are creating
  name: java-app-svc
spec:
  selector:
    app: java-app
  ports:
    - protocol: "TCP"
      port: 80
      targetPort: 8080
  type: LoadBalancer # type of the service.

Step 5: Setting up AWS EKS Cluster using eksctl

eksctl is a simple CLI tool for creating and managing clusters on EKS. It's a preferred option because of its simplicity and ease of use. Here’s how to create an EKS cluster using eksctl:

1. Install eksctl:

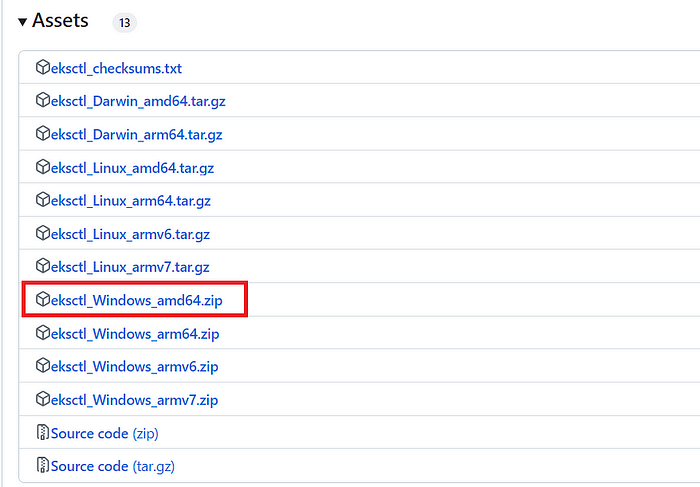

• Click on Below Link :

Release eksctl 0.176.0 · eksctl-io/eksctl

• Install the eksclt windows release.

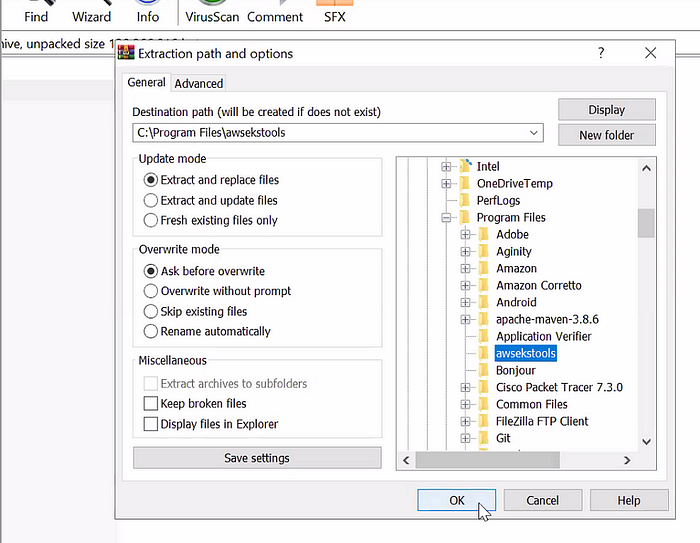

• Extract the folder in your local computer.

2. Configuring AWS CLI:

• Download the AWS CLI tool in your local computer.

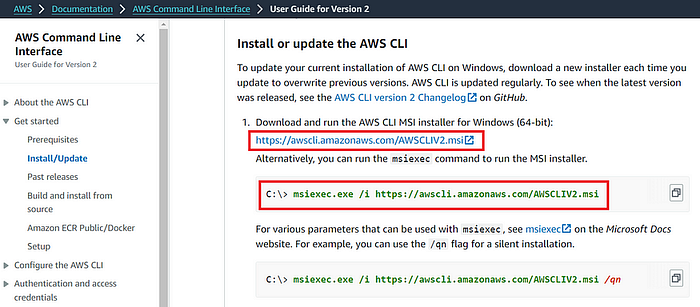

Install or update to the latest version of the AWS CLI

• Download the AWS CLI from here and configure it for your account.
• For this you need to create IAM User in your account.
• In Security credentials, click on Create access key option and create the access and secret key and copy both.

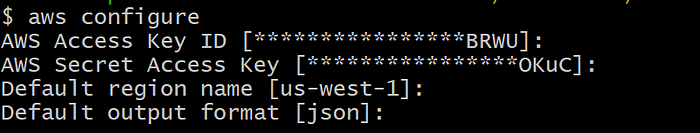

• Now go to your local command line, and write command aws configure and paste these credentials there

• Paste your access key in Access Key ID and Secret Key in Secret Access Key ID. And also give the default region that you want to set.

After successfully set up aws cli, we also need to install client tool for kubernetes that is Kubectl, that will deploy our applications inside cluster.

3. Creating an EKS Cluster:

• Create a EKS cluster setup file in yaml.

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig

metadata:
  name: my-test-cluster
  region: us-east-1

nodeGroups:
  - name: small-nodegroup
    instanceType: t2.micro
    desiredCapacity: 2

  - name: medium-nodegroup
    instanceType: t2.small
    desiredCapacity: 2

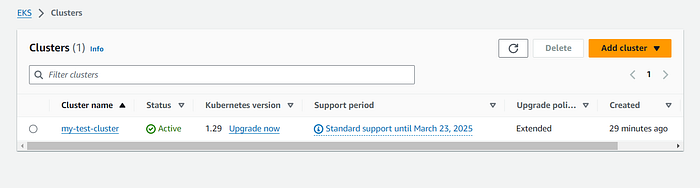

• Now with a single command, eks will launch the entire cluster.

eksctl create cluster -f cluster-setup.yml

Step 6: Connecting EKS Cluster with GitLab

After creating the EKS cluster, the next step is to connect it to GitLab to manage deployments directly from your CI/CD pipeline.

• Create a agent configuration file .gitlab/agents/eks-k8s/config.yaml in your repository:

user_access:
  access_as:
      agent: {}
  projects:
      - id: <your-project-id>

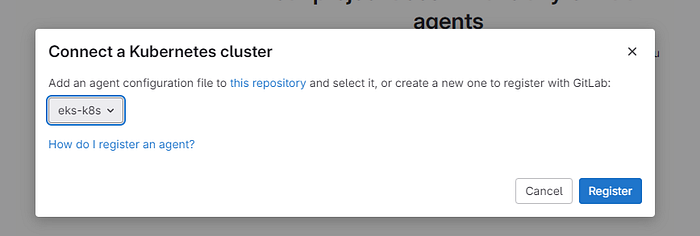

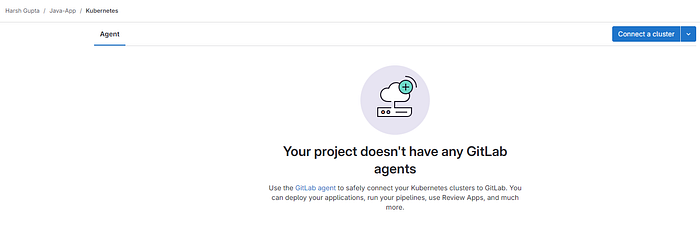

• Navigate to Operate > Kubernetes Cluster > Connect a cluster.

• Select your agent from dropdown and Register it.

• Copy the token and agent configuration commands after this step.

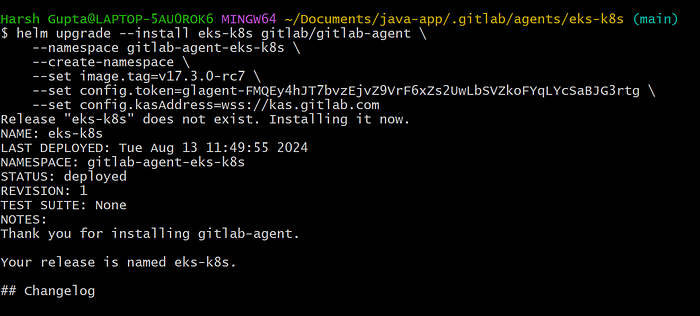

• Run the those commands in your cluster to deploy gitlab agent.

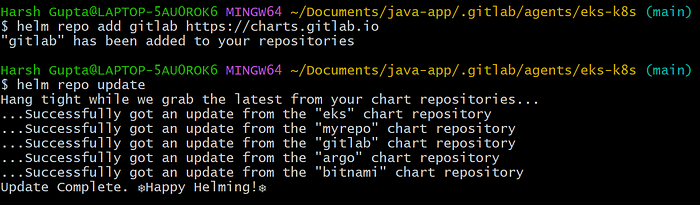

helm repo add gitlab https://charts.gitlab.io
helm repo update
 helm upgrade --install eks-k8s gitlab/gitlab-agent \
    --namespace gitlab-agent-eks-k8s \
    --create-namespace \
    --set image.tag=v17.3.0-rc7 \
    --set config.token= <your-token> \
    --set config.kasAddress= <your-kasAddress>

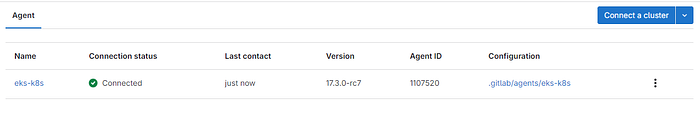

• Once the agent is deployed, you will see that the Connection Status on gitlab is showing Connected .

• Now we need to add the registry credentials in kubernetes manifest so that it can pull the image while creating deployment.
• For this we will create secret named registry-credentials
• So we need Token for this step to authenticate to our registry.

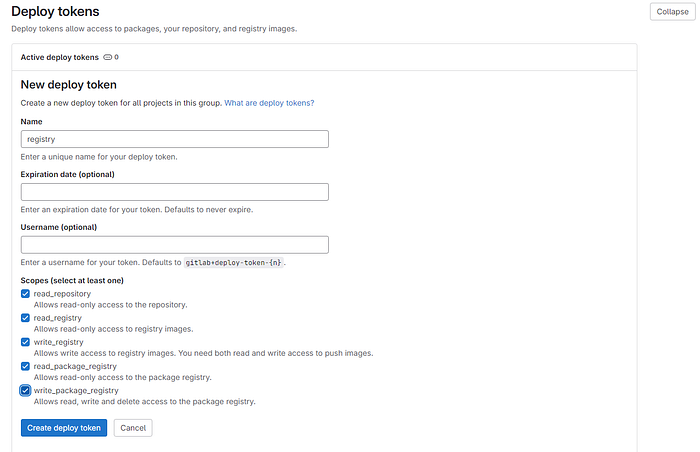

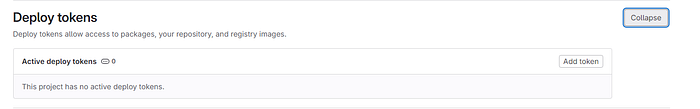

• Go to Settings > Repository > Display tokens > Add Token.

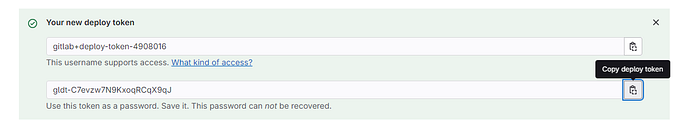

• Create deploy token and copy them. They will be used as our container registry’s username and password.

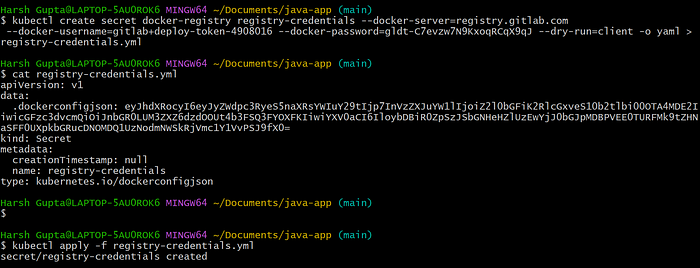

• Go to your cluster and create a docker-registry secret named registry-credentials.

 kubectl create secret docker-registry registry-credentials --docker-server=registry.gitlab.com --docker-username=<1st-token> --docker-password=<2nd-token> --dry-run=client -o yaml > registry-credentials.yml

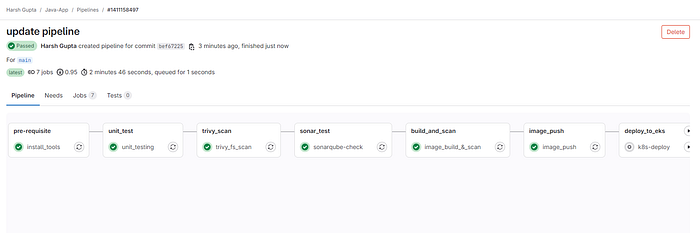

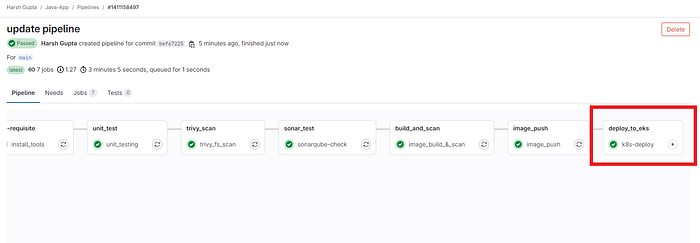

Step 7: Running the Pipeline

With everything set up, it’s time to run the pipeline.

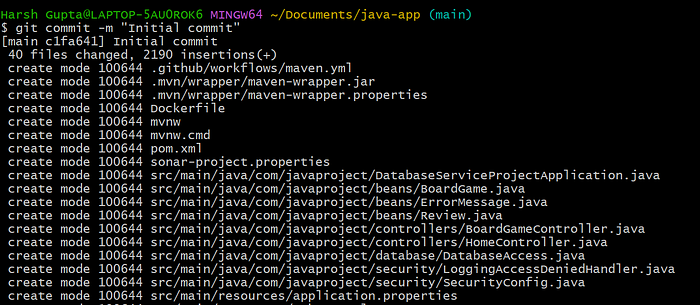

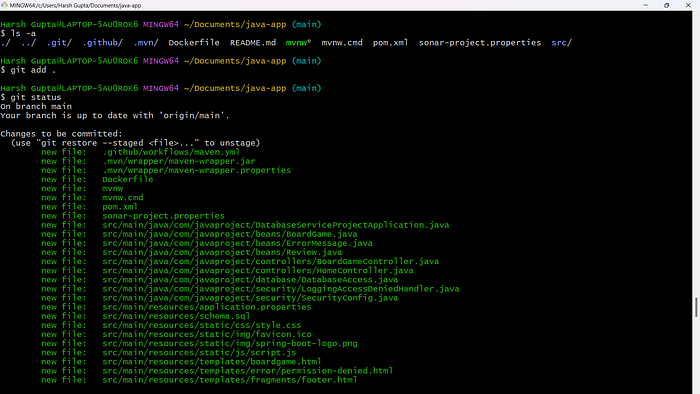

1. Commit and Push Code:

• Ensure that your .gitlab-ci.yml file, Java source code, and Kubernetes deployment manifests, Dockerfile are committed to your GitLab repository.

.gitlab-ci.yml :

stages:
  - pre-requisite
  - unit_test
  - trivy_scan
  - sonar_test
  - build_and_scan
  - image_push
  - deploy_to_eks

install_tools:
  stage: pre-requisite
  script:
    - sudo apt install -y openjdk-17-jre-headless
    - sudo apt install -y maven
    - sudo apt-get install -y wget apt-transport-https gnupg lsb-release
    - wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | sudo apt-key add -
    - echo deb https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main | sudo tee -a /etc/apt/sources.list.d/trivy.list
    - sudo apt-get update && sudo apt-get install -y trivy
    - sudo apt -y install docker.io && sudo chmod 666 /var/run/docker.sock
    - sudo snap install kubectl --classic
  tags:
    - dedicated-runner
  only:
    - main

unit_testing:
  stage: unit_test
  script:
    - mvn test
  tags:
    - dedicated-runner
  only:
    - main

trivy_fs_scan:
  stage: trivy_scan
  script:
    - trivy fs --format table -o fs.html .
  tags:
    - dedicated-runner
  artifacts:
    paths:
      - fs.html
  only:
    - main

sonarqube-check:
  stage: sonar_test
  image:
    name: sonarsource/sonar-scanner-cli:latest
  variables:
    SONAR_USER_HOME: "${CI_PROJECT_DIR}/.sonar"  # Defines the location of the analysis task cache
    GIT_DEPTH: "0"  # Tells git to fetch all the branches of the project, required by the analysis task
  cache:
    key: "${CI_JOB_NAME}"
    paths:
      - .sonar/cache
  script:
    - sonar-scanner
  allow_failure: true
  only:
    - main


image_build_&_scan:
  stage: build_and_scan
  variables:
    Image_tag: $CI_REGISTRY/harsh005/java-app/java-app:$CI_PIPELINE_ID
  script:
    - mvn clean package
    - docker build -t $Image_tag .
    - trivy image $Image_tag --format table -o image.html
  tags:
    - dedicated-runner
  artifacts:
    paths:
      - image.html
  only:
    - main

image_push:
  stage: image_push
  variables:
    Image_tag: $CI_REGISTRY/harsh005/java-app/java-app:$CI_PIPELINE_ID
  before_script:
    - docker login $CI_REGISTRY -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD
  script:
    - docker push $Image_tag
  tags:
    - dedicated-runner
  only:
    - main

k8s-deploy:
  stage: deploy_to_eks
  variables:
    KUBE_CONTEXT: harsh005/java-app:eks-k8s
  image:
    name: bitnami/kubectl:latest
    entrypoint: ['']
  before_script:
    - kubectl config use-context "$KUBE_CONTEXT"
  script:
    - envsubst < deployment-service.yaml.template > deployment-service.yaml
    - kubectl apply -f deployment-service.yaml
  only:
    - main
  when: manual

• Here we also put some job controls that all the jobs will run in main branch. And if all the jobs prior to deploy_to_eks stage are successful, then we manually trigger the k8s-deploy job, that will deploy our code on our self-managed Kubernetes.

2. Trigger the Pipeline:

• Once the code is pushed, GitLab will automatically detect the .gitlab-ci.yml file and trigger the pipeline.

3. Monitor the Pipeline:

• Navigate to the CI/CD > Pipelines section in your GitLab project to monitor the progress.
• You’ll see each stage — installation, testing, scanning, building and deploying— execute in sequence in test branch.

• You can see the results of trivy scan or sonarqube testing as we told earlier.
• Now since all the testing and building is done, we can manually trigger k8s-deploy job for final deploy.

4. Review Pipeline Results:

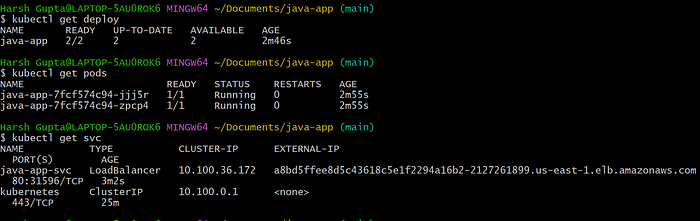

• Review the output logs for each job. If everything is set up correctly, the pipeline should complete successfully, and your Java application will be deployed to your Kubernetes cluster.

5. Output:

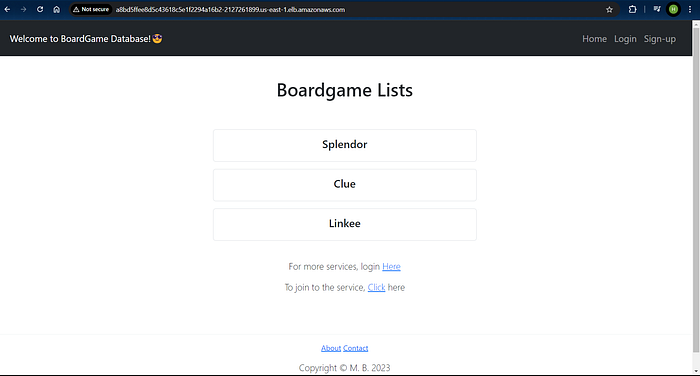

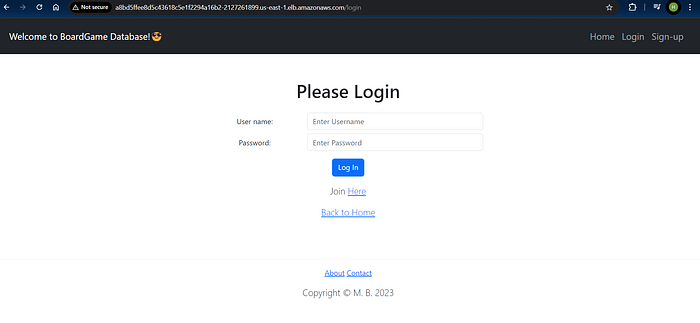

• Copy the external ip (load balancer URL) and paste it on your browser.

Conclusion

In this project, we’ve covered the setup and deployment of a Java application on a self-managed Kubernetes multi-cluster using GitLab CI/CD. The process included unit testing, security scanning, code quality analysis, building, containerization, and finally, deploying the application using Kubernetes. This pipeline automates the software delivery process, ensuring high-quality code is consistently deployed in a secure and efficient manner. By running the pipeline, we’ve seen how GitLab CI/CD can streamline complex deployments, integrating multiple tools and processes into a single automated workflow.
